Weigh Pads

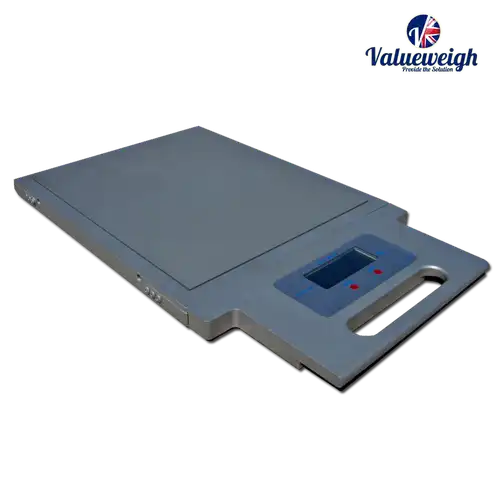

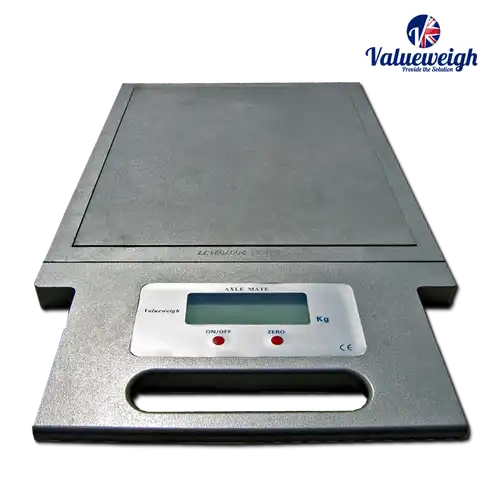

The VWAP axle weigh pads have long been at the forefront of axle weighing and at only 18mm high
are
the slimmest, lightest and most portable weigh pads available. A high strength aluminium alloy
construction ensures impressive strength and robustness.

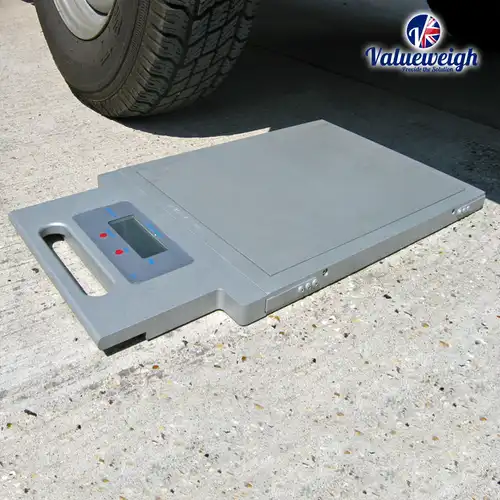

The weigh pads have the option of two quick release access ramps or interlocking tracking and are highly
portable with carry handles allowing them to be stored and carried to the weighing location when required. All
VWAP models feature detachable cables for maximum portability and quick and easy servicing.
The weigh pads are sealed to protect against water and can be used for static or dynamic axle
weighing. Standard, large and over-size models are available making the VWAP ideal for weighing
all types of vehicles from cars to lorries. Contact Midweigh for your specific weigh pad
requirements.
- Made from the same material as aircrafts for strength and light weight portability
- Tough and robust construction
- Convenient carry handles
- Optional ramps or tracking for easy access
- Multiple button loadcells for accurate weighing
- 1 year manufacturer's warranty
- Various standard sizes and capacities
- Custom sizes and capacities available
Weigh pad Models
| Model | Weighing Area | Capacity | Ramp Details | Pad Weight |
|---|---|---|---|---|
| VWAP750 | 360mm x 290mm x 18mm | 750kg | Optional | 6kg |
| VWAP2 | 360mm x 290mm x 18mm | 2000kg | Optional | 6kg |
| VWAP2L | 560mm x 460mm x 18mm | 2000kg | Optional | 15kg |
| VWAP5L | 560mm x 460mm x 18mm | 5000kg | Optional | 15kg |
| VWAP10 | 715mm x 420mm x 18mm | 10000kg | 2 as standard | 19kg (excl. ramps) |
| VWAP20 | 715mm x 420mm x 18mm | 20000kg | 2 as standard | 19kg (excl. ramps) |
| VWAP20L | 900mm x 620mm x 18mm | 20000kg | 2 as standard | 32kg (excl. ramps) |
| VWAP20+ | 715mm x 420mm x 23mm | 20000kg | 1m Tracking (more optional) | 32kg (excl. ramps) |
Weigh pad Specifications
| Capacity Options | 750kg, 2000kg, 5000kg, 10000kg and 20000kg (spread load) |
|---|---|
| Pad Height | 18mm (23mm for VWAP20+) |
| Construction | High Strength Aluminium Alloy with tough grey painted finish |
| Build | Low profile frame with button loadcells spread across the weighing area. Lifting handles as standard |
| Loadcells | Custom designed button loadcells |
| Cable | 10m of high quality cable with armoured steel conduit |
| Ramps | Ramps 120mm long - standard on VWAP10/20 optional on other models. Tracking as standard on VWAP20+ (0.5m per side - additional optional) |
| Static Accuracy | Approx 0.5% FS |
| Required Excitation Voltage | 5 - 24 VDC |
| Recommended Surface Level | Ideally concrete/tarmac or similar Level to < 5mm within 0 - 4m (static weighing) Level to < 3mm for twice the vehicle length (dynamic) |
| All VWAP models feature removable cables with tough steel conduit and robust sealed connectors. The connectors allow the cables to be disconnected from the weigh pads prior to lifting to maximise portability. The connectors are standardised throughout the range to ensure cables can be disconnected and quickly replaced if required | |
